350 Kw Class Metro Shunting Hydrodynamic Transmission System

Place of Origin China
Nazwa handlowa HTR
Model Number YJ480FK;RC60442
Minimum Order Quantity 10pcs
Cena negocjowalne
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Możliwość Supply 1000 szt./miesiąc

Skontaktuj się ze mną o darmowe próbki i kupony.

Co to jest?:0086 18588475571

WeChat: 0086 18588475571

Skype'a: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Product Name 350 Kw Class Metro Shunting Hydrodynamic Transmission System Maximum Efficiency 0.87
Odległość upadku wału 778 mm Zero-Speed Torque Ratio 2.63
Oil Capacity 80 L
Zostaw wiadomość
opis produktu

Products Description

The 350 kW Class Metro Shunting Transmission System, installed on shunting locomotives, provides power for metro vehicle shunting, consist assembly, and transfer operations. It ensures safe and efficient vehicle movements across depots, yards, and mainlines.


Specification

Product Performance Reference Value
Product Model YJ435FK
Cycle Diameter 435 mm
Maximum Input Speed 2400 rpm
Matching Power Range 240-386 kW
Zero-Speed Torque Ratio 2.63
Nominal Torque at Zero-Speed
Operating Condition (MBg0)
492 N·m
Nominal Torque at High Efficiency Operating Condition (MBgη) 365 N·m
Maximum Efficiency 0.87
Weight 330 kg


Product Performance Reference Value
Product Model RC50460
Cycle Diameter 5000 N·m
Maximum Input Speed 2300 rpm
Matching Power Range 250-400 kW
Gear Ratios Forward 1 / Reverse 1: 5.156 / 5.27
Forward 3 / Reverse 3: 1.402 / 1.433
Forward 2 / Reverse 2: 2.465 / 2.52
Forward 4 / Reverse 4: 0.913 / 0.934
Oil Capacity 80 L
Weight 1720 kg
Shaft Drop Distance 778 mm

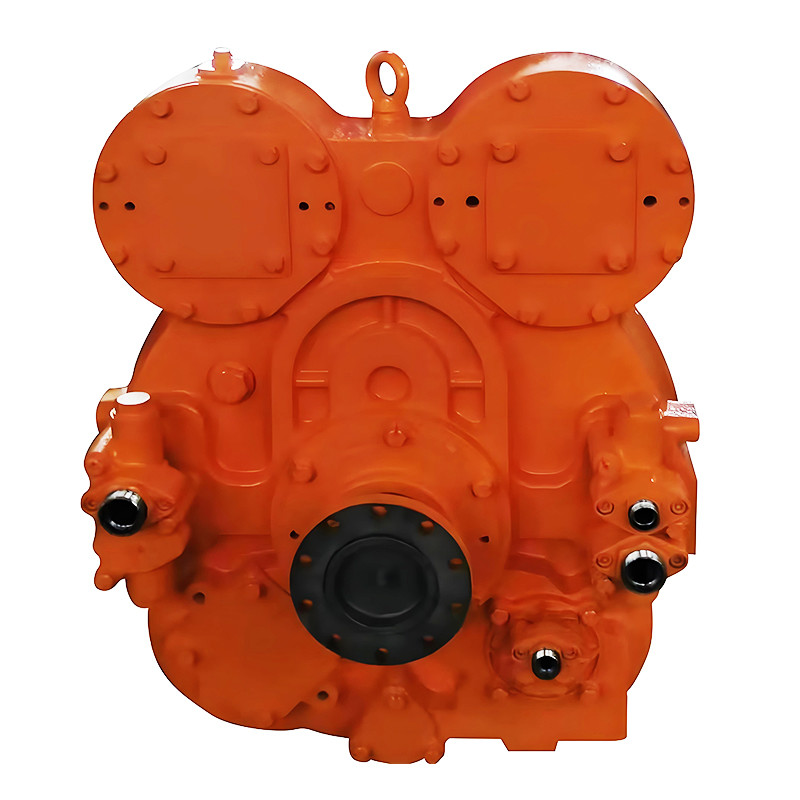

350 Kw Class Metro Shunting Hydrodynamic Transmission System 0

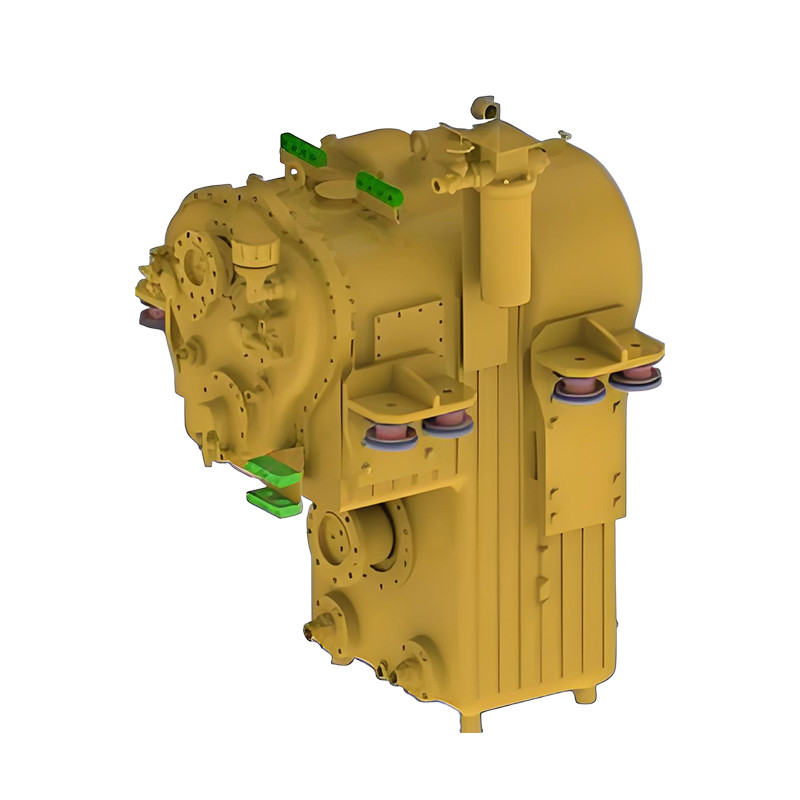

350 Kw Class Metro Shunting Hydrodynamic Transmission System 1
