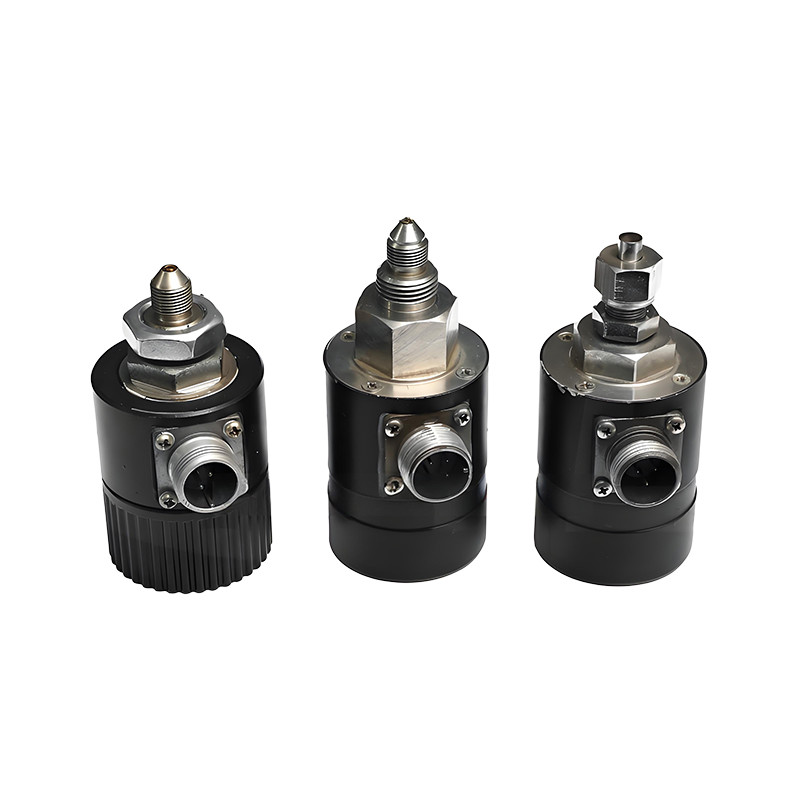

HT-YZ-10 and HT14B Pressure Transmitters

Place of Origin China
Nazwa handlowa HTR
Model Number HT-YZ-10&HT14B
Minimum Order Quantity 10pcs
Cena negocjowalne
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Skontaktuj się ze mną o darmowe próbki i kupony.

Co to jest?:0086 18588475571

WeChat: 0086 18588475571

Skype'a: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Operating Temperature -25°C to +70°C Storage Temperature -40°C to +85°C
Measurement Range 0–1000 kPa Output Signal 0–2V, 0–5V, 0–10mA, 4–20mA
Transmission Mode Three-wire or four-wire Load Capacity ≥ 2 kΩ
Power Supply 15VDC ±20%, 24VDC ±20% Current Consumption < 15 mA
Insulation Resistance > 20 MΩ
Podkreślić

HT-YZ-10 Pressure Transmitters

,

HT14B Pressure Transmitters

Zostaw wiadomość
opis produktu

Products Description

Mainly used for measuring absolute and gauge pressure, this device outputs either a linear voltage signal or standard current signals such as 2V, 10mA, or 4–20mA. It supports a  pressure range of 0 to 1000 kPa, making it suitable for pressure monitoring in diesel engine systems, braking systems, traction systems, and signaling systems. It is widely used in  leading vehicle models across Europe and Asia, particularly in applications such as brake  control, fuel systems, air compressors, cooling systems, and lubrication systems.


Specification

Item

Specification

Operating Temperature

-25°C to +70°C

Storage Temperature

-40°C to +85°C

Measurement Range

01000 kPa

Output Signal

02V, 05V, 010mA, 420mA

Transmission Mode

Three-wire or four-wire

Accuracy

±0.5% FS (within -50°C to +50°C)±1% FS (within -25°C to 0°C and 50°C to 70°C)

Load Capacity

 2 kΩ

Power Supply

15VDC ±20%, 24VDC ±20%

Current Consumption

< 15 mA

Insulation Resistance

> 20 MΩ

Dielectric Strength

Withstands 500VAC, 50Hz for 1 minute (between housing and external connections)

Process Connection

M12×1.0 (optional)
