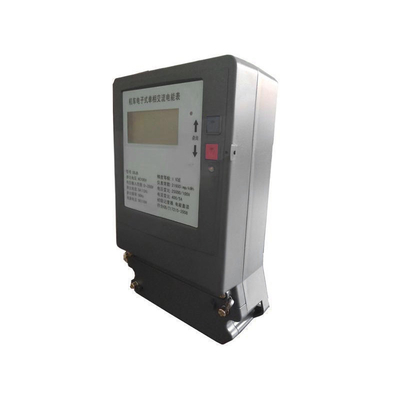

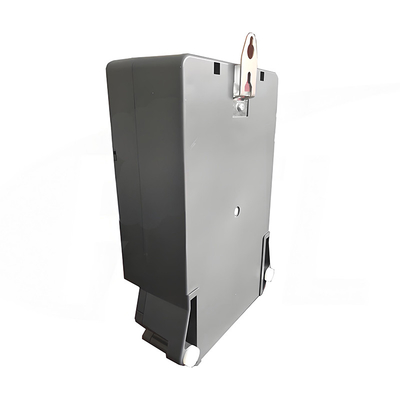

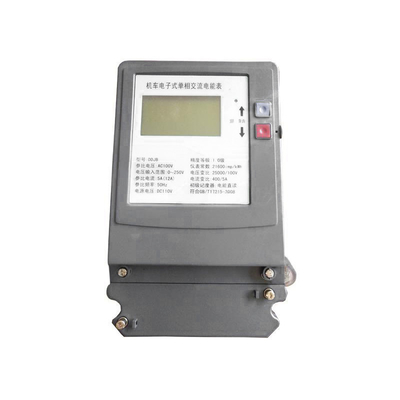

5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency

  • 5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
  • 5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
  • 5A Rated Current Electronic Single-phase AC HTJB Locomotive Energy Meter With 50Hz Reference Frequency
Place of Origin China
Nazwa handlowa HTR
Model Number HTJB
Minimum Order Quantity 10pcs
Cena negocjowalne
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Skontaktuj się ze mną o darmowe próbki i kupony.

Co to jest?:0086 18588475571

WeChat: 0086 18588475571

Skype'a: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Rated Voltage 110 VAC Voltage Input Range 0–150 VAC
Rated Current 5 A (maximum input current: 12 A) Power Supply Voltage 110 VDC
Reference Frequency 50 Hz Meter Constant 6400 imp/kWh
Power Consumption ≤ 4 VA Display Type LCD display
Podkreślić

50Hz Locomotive Energy Meter

,

Electronic Locomotive Energy Meter

,

5A Rated Current Locomotive Energy Meter
Zostaw wiadomość
opis produktu

Products Description

The electronic single-phase AC energy meter is a fully digital device designed for accurate measurement of both forward and reverse active and reactive energy in single-phase AC systems. In addition to precise energy metering, the device supports intelligent energy  management based on crew dispatch or duty cycles, making it well-suited for applications  in locomotives and rail vehicles.

With its fully electronic architecture, the meter offers high reliability, stable performance,  and resistance to electromagnetic interference. It enables real-time monitoring and  efficient energy usage tracking, contributing to operational safety and cost-effective power management in modern railway systems.


Specification

Item

Specification

Rated Voltage

110 VAC

Voltage Input Range

0–150 VAC

Rated Current

5 A (maximum input current: 12 A)

Power Supply Voltage

110 VDC

Reference Frequency

50 Hz

Meter Constant

6400 imp/kWh

Voltage Ratio

25000/100

Current Ratio

400/5

Accuracy Class

Active energy: Class 1.0; Reactive energy: Class 2.0;
Other measurements: Class 1.5

Starting Current

0.02 Ib

Power Consumption
(Voltage Circuit)

≤ 0.1 W

Power Consumption
(Current Circuit)

≤ 4 VA

Display Type

LCD display

Meter Type

Primary energy meter with direct reading

Maximum Cumulative
Energy Display

124,275,677 kWh
