IP54 Protection Rating Train Locomotive Equipment HT-807 Mechanical Tachometer for Industrial

Place of Origin China
Nazwa handlowa HTR
Model Number HT-807
Minimum Order Quantity 10pcs
Cena negocjowalne
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Skontaktuj się ze mną o darmowe próbki i kupony.

Co to jest?:0086 18588475571

WeChat: 0086 18588475571

Skype'a: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Measuring Range Customizable (Typical: 0–3000 RPM or as required) Accuracy ±1.5% of Full Scale
Working Temperature -20°C to +50°C Relative Humidity ≤85% (Non-Condensing)
Protection Rating IP54
Podkreślić

IP54 Mechanical Tachometer

,

Industrial Mechanical Tachometer

,

Train Locomotive Mechanical Tachometer

Zostaw wiadomość
opis produktu

Products Description

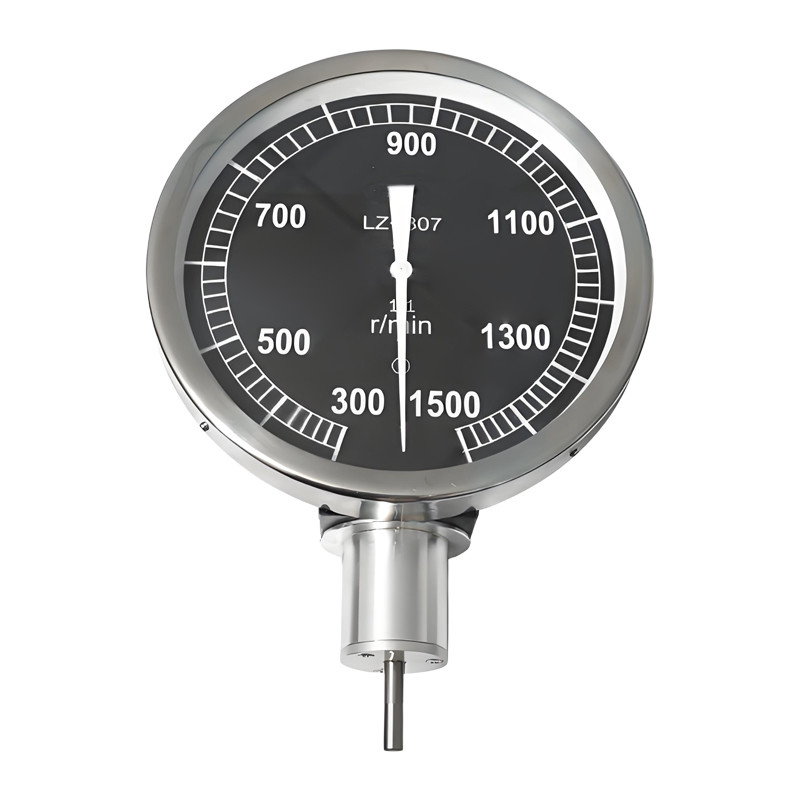

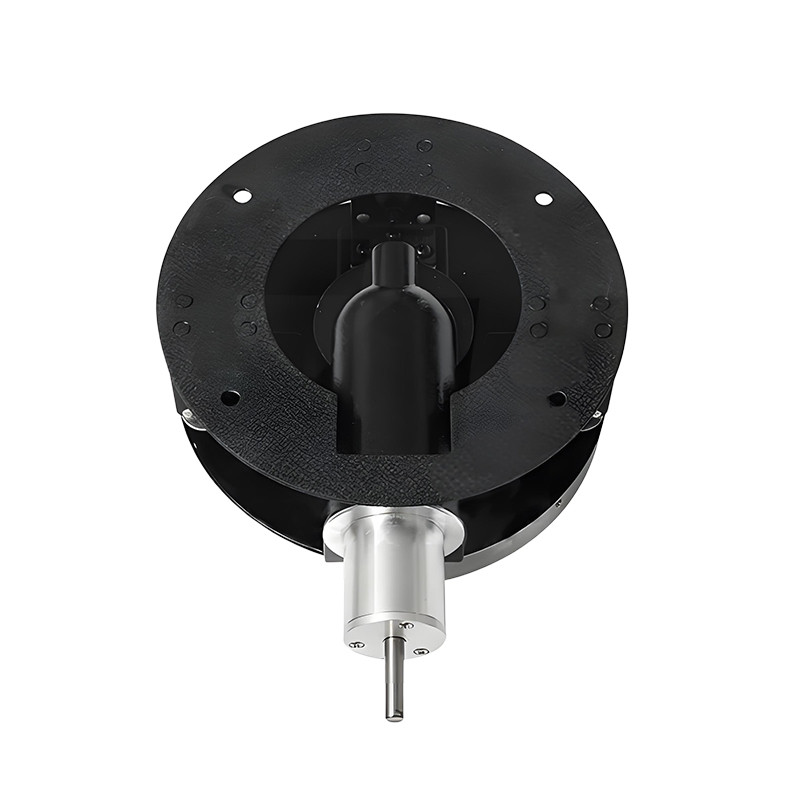

The HT-807 is a mechanical tachometer designed for real-time indication of rotational  speed in locomotives, industrial equipment, or heavy machinery. It operates without  requiring external power, relying on direct mechanical drive to display RPM via an analog  pointer. With its rugged construction, high vibration resistance, and long service life, the HT -807 is suitable for harsh operating environments and widely applied in railway and  industrial control systems.



Specification

Item

Specification

Measuring Range

Customizable (Typical: 03000 RPM or as required)

Accuracy

±1.5% of Full Scale

Working Temperature

-20°C to +50°C

Relative Humidity

85% (Non-Condensing)

Temperature Influence

When ambient temperature varies from 20°C to -20~+50°C, additional error does
not exceed the basic error limit

Mounting Method

Panel Mounting or Flange Mounting (Customizable)

Vibration Resistance

Meets General Mechanical Vibration Standards for Industrial Instruments

Protection Rating

IP54 (Front Panel, Optional Customization)

Applications

Locomotives, Rail Vehicles, Industrial Machinery, and Other Rotating Systems
