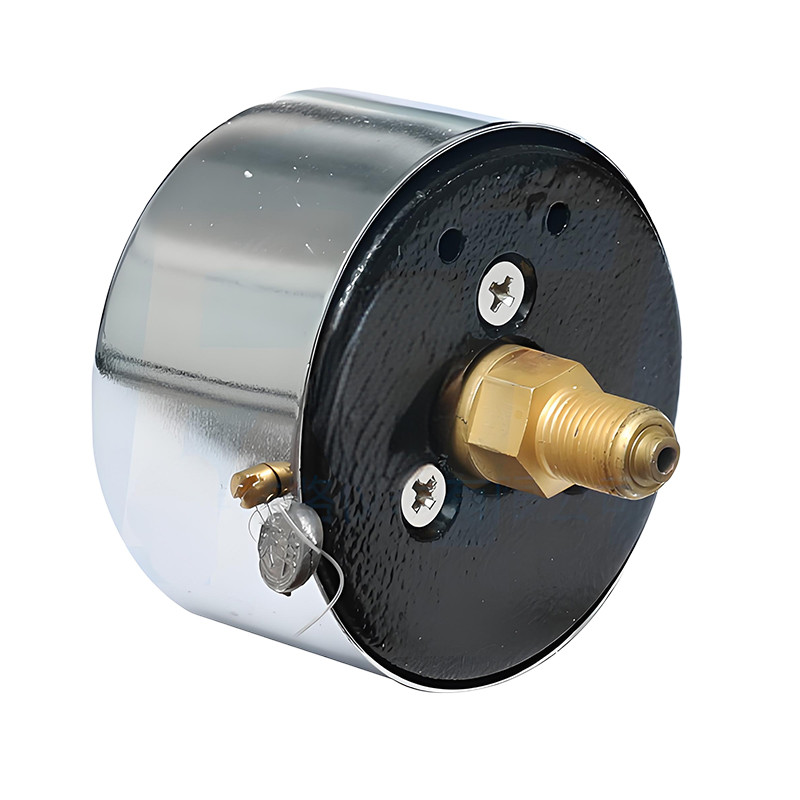

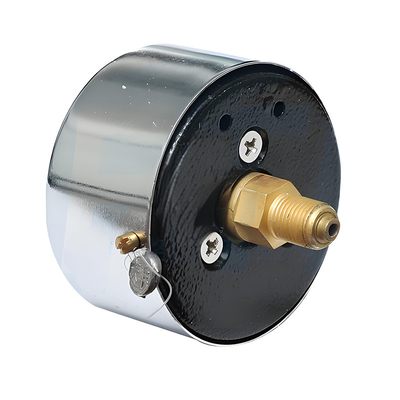

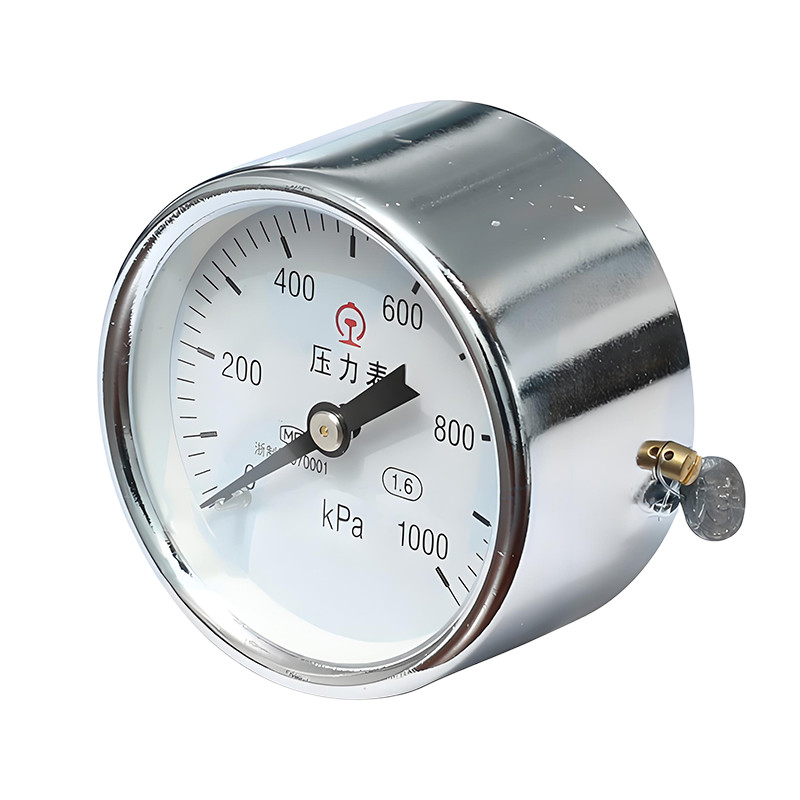

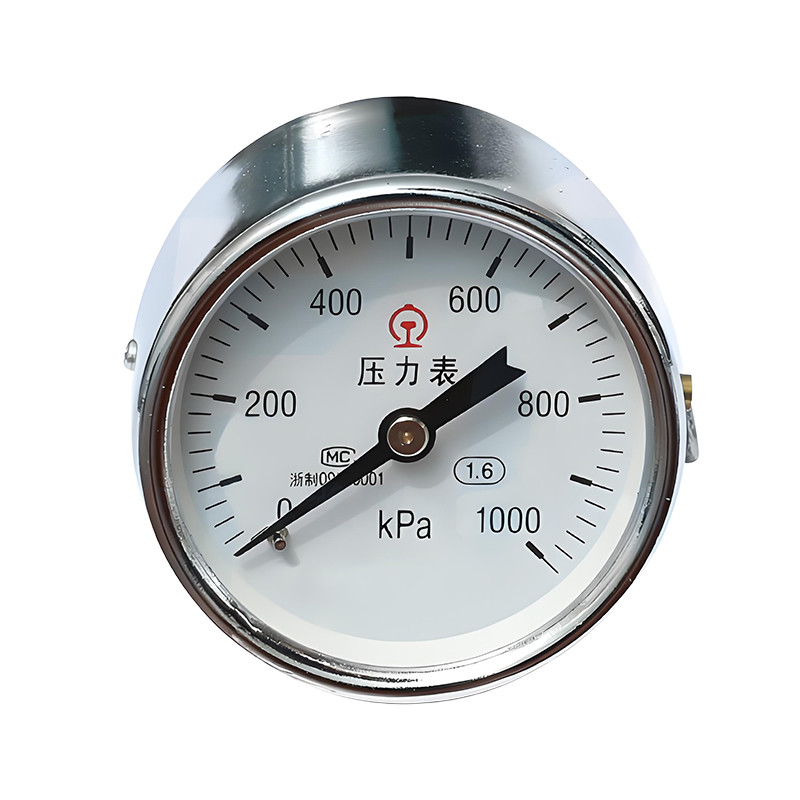

Railway Vehicle Locomotive Instrumentation H60Z Single Needle Pressure Gauge

Place of Origin China
Nazwa handlowa HTR
Model Number H60Z
Minimum Order Quantity 10pcs
Cena negocjowalne
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Skontaktuj się ze mną o darmowe próbki i kupony.

Co to jest?:0086 18588475571

WeChat: 0086 18588475571

Skype'a: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Measuring Range 0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa Accuracy Class Class 1.6
Operating Temperature -40°C to +70°C, with relative humidity not exceeding 95% Temperature Influence When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C
Illumination Voltage DC 24V ±30% / DC 110V ±30% Insulation Voltage ≥ AC 500V (1 minute, no breakdown)
Dielectric Strength ≥ AC 1500V / 50Hz (1 minute, no flashover or breakdown)
Podkreślić

H60Z Single-needle Pressure Gauge

,

Locomotive Instrumentation Single-needle Pressure Gauge

,

Railway Vehicle Locomotive Instrumentation

Zostaw wiadomość
opis produktu

Products Description

The single-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its operating principle is based on the  deformation of a Bourdon tube under the action of the medium's pressure. This  deformation is transmitted and amplified through a mechanical linkage, driving the pointer to deflect across the dial scale and thereby indicating the measured pressure value.


Specification

Item

Specification

Measuring Range

0 ~ 1000 kPa, 0 ~ 1200 kPa, 0 ~ 1600 kPa

Accuracy Class

Class 1.6

Operating Temperature

-40°C to +70°C, with relative humidity not exceeding 95%

Temperature Influence

When ambient temperature deviates from 20°C ± 5°C, additional error  0.4%/10°C

Illumination Voltage

DC 24V ±30% / DC 110V ±30%

Insulation Voltage

 AC 500V (1 minute, no breakdown)

Dielectric Strength

 AC 1500V / 50Hz (1 minute, no flashover or breakdown)

Standard Compliance

The pressure gauge complies with GB/T 1226-2010 [General Pressure Gauge Standard]
