High Performance UIC Railway Brake System Powder Metallurgical Brake Shoe

Miejsce pochodzenia Chiny
Nazwa handlowa HTR
Orzecznictwo CRCC
Minimalne zamówienie Do uzgodnienia
Cena Ngotiable
Szczegóły pakowania Opakowania eksportowe lub na zamówienie
Czas dostawy 15-50 dni, zależy od ILOŚCI
Zasady płatności L/C, T/T
Możliwość Supply 9000 SZTUK MIESIĘCZNIE

Skontaktuj się ze mną o darmowe próbki i kupony.

Co to jest?:0086 18588475571

WeChat: 0086 18588475571

Skype'a: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Nazwa produktu Kolejowe klocki hamulcowe Materiał Metalurgia proszkowa
Zastosowanie Wagon kolejowy, samochód osobowy itp. MOQ 1000 sztuk
Kontrola Krajowy lub wyznaczony Usługa Dostosowana obsługa
Prędkość Używanie przez 80-120 km/h Cechy Przyjazny środowisku
Zalety Wytrzymałość na rozciąganie
Podkreślić

System hamulcowy kolejowy o wysokiej wydajności

,

System hamulcowy kolejowy UIC

,

System hamulcowy kolei metalochemicznej w proszku

Zostaw wiadomość
opis produktu

Product Overview

When the train is running and braking, the brake part that directly rubs the wheel to stop the train is the brake shoe; the
tile-shaped brake block made of cast iron, composite material or other materials holds the wheel tread tightly and makes the wheel stops rotating through friction.

Powder metallurgy materials are made by taking metal powder as a matrix, properly adding friction agent, lubricant and other components, and pressing and controlling high-temperature sintering (900-1050 ºC).

According to the requirements of braking friction performance, powder metallurgy brake shoes are divided into low friction
coefficient brake shoes, standard friction coefficient brake shoes, and high friction coefficient brake shoes.

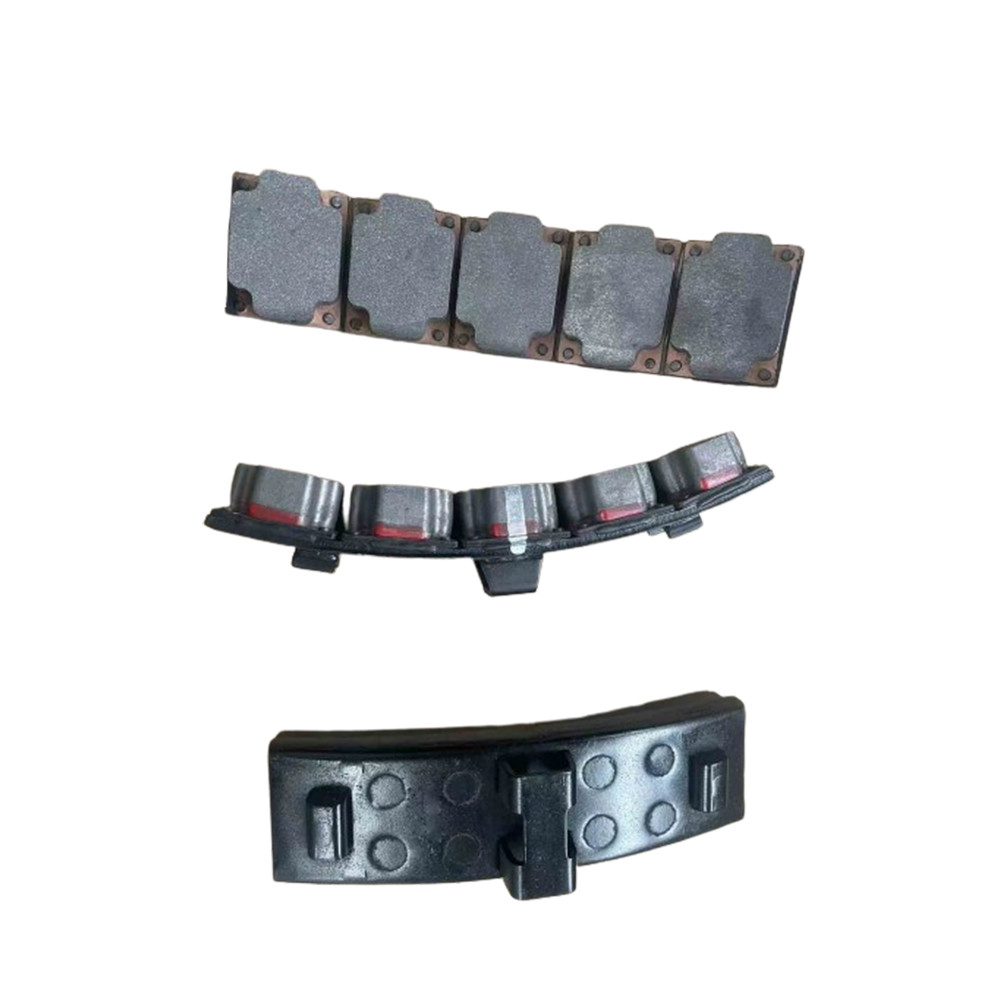

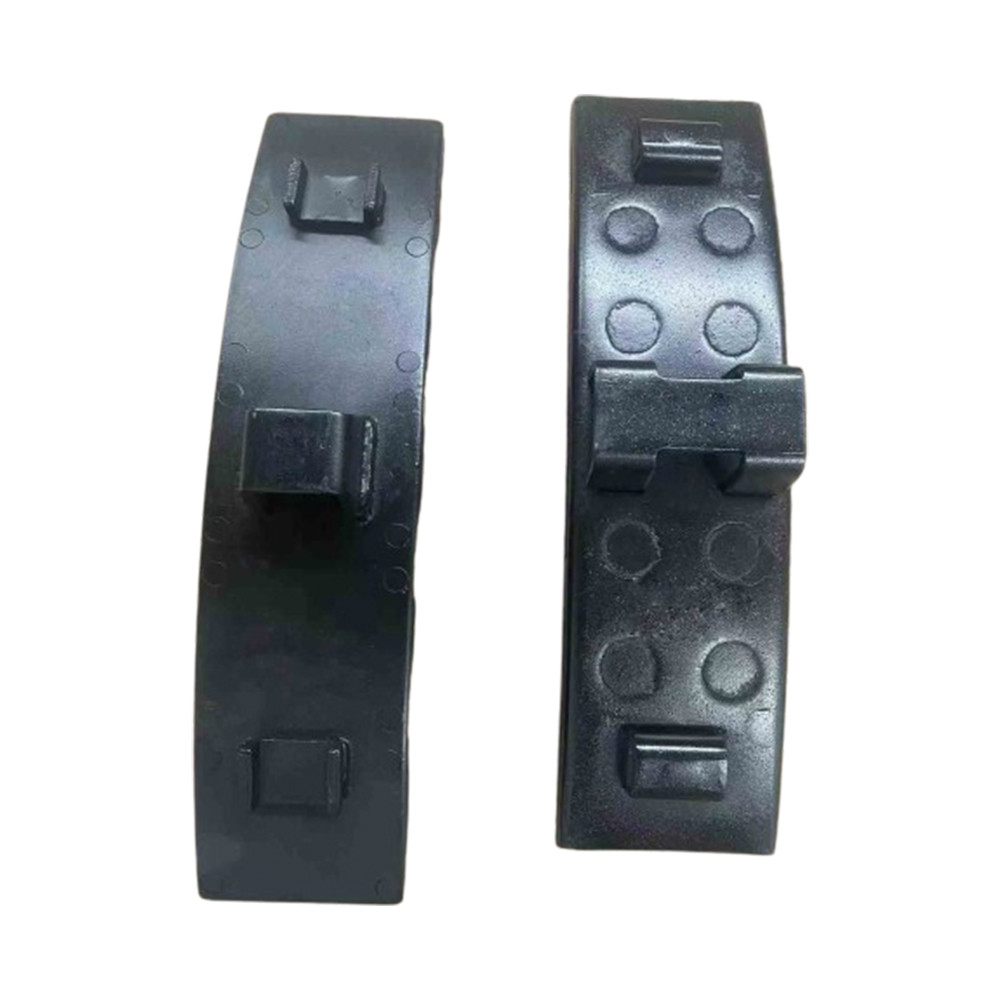

The brake shoe is composed of a shoe back, steel back, and friction body.The brake shoe back shall be made of steel plate with mechanical properties not lower than Q235.The friction body is made of metal or its alloy as the matrix, added with other metal and non-metal components for friction,friction reduction or some special functions, and sintered with the steel back by powder metallurgy technology.

The brake shoe shall be free of asbestos, lead or its compounds, and other materials that may endanger human health and may produce harmful gases, dust or compounds.

The locomotive powder metallurgy brake shoe has the advantages of high and stable friction coefficient, wear resistance, excellent thermal conductivity, good thermal cracking resistance, and stable friction coefficient in rainy and snowy weather.

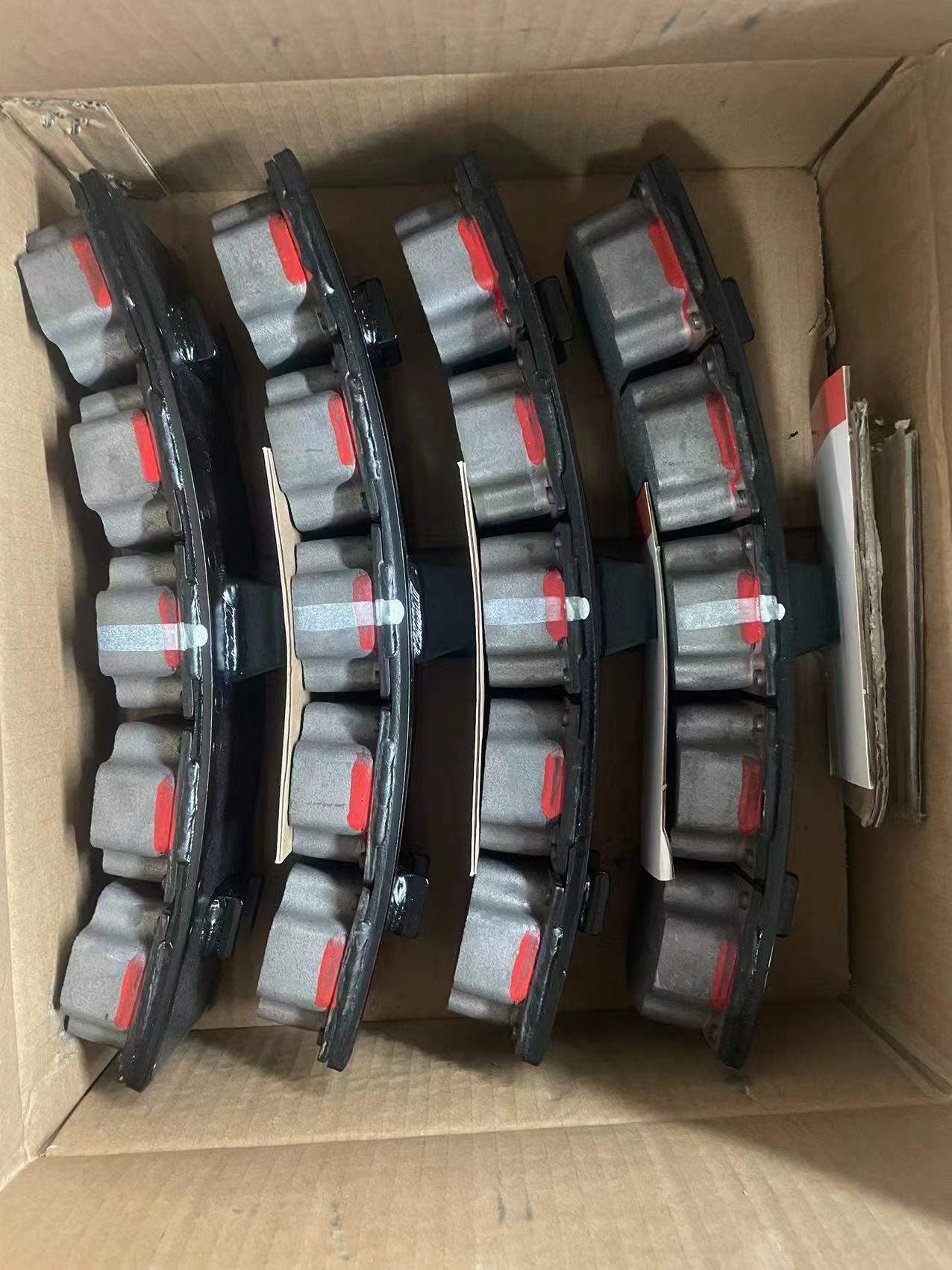

High Performance UIC Railway Brake System Powder Metallurgical Brake Shoe 0


Product Specification

Product Name Railway Brake Blocks
Material Powder metallurgy
Braking Force 1. High friction(2.8~3.2)
2. Low friction(1.7~2.2)
Density(g/cm3) Not more than ± 5%
Speed <160km/h,160-200km/h
Application Railway wagon, passenger car ect.
Hardness(HBW10/1000) ≤120
Compressive strength(MPa) ≥90


Advantage

  • Customized according to customer requirements
  • Friction property can be adjust according to requirement.
  • Good wear resistance and long life span.
  • Its no Crocidolite in Ironstone(asbestos).
  • It contains no lead, zinc or any other toxic materials,
  • it is environmental friendly, and causes no bad smell in friction.

Application

Specific products include:

· Wheel set: axle, wheel

· Bearing & axle box

· Spring & vibration control system: steel spring, rubber spring, air spring, leveling valve, shock absorber and other truck components

· Coupler & draft gear device

· Braking system that meet UIC & AAR requirements

· Passenger train facilities & equipment: window, handrail, luggage rack, seat, HVAC system, toilet, gangway, plug door, interior products

· Locomotive parts

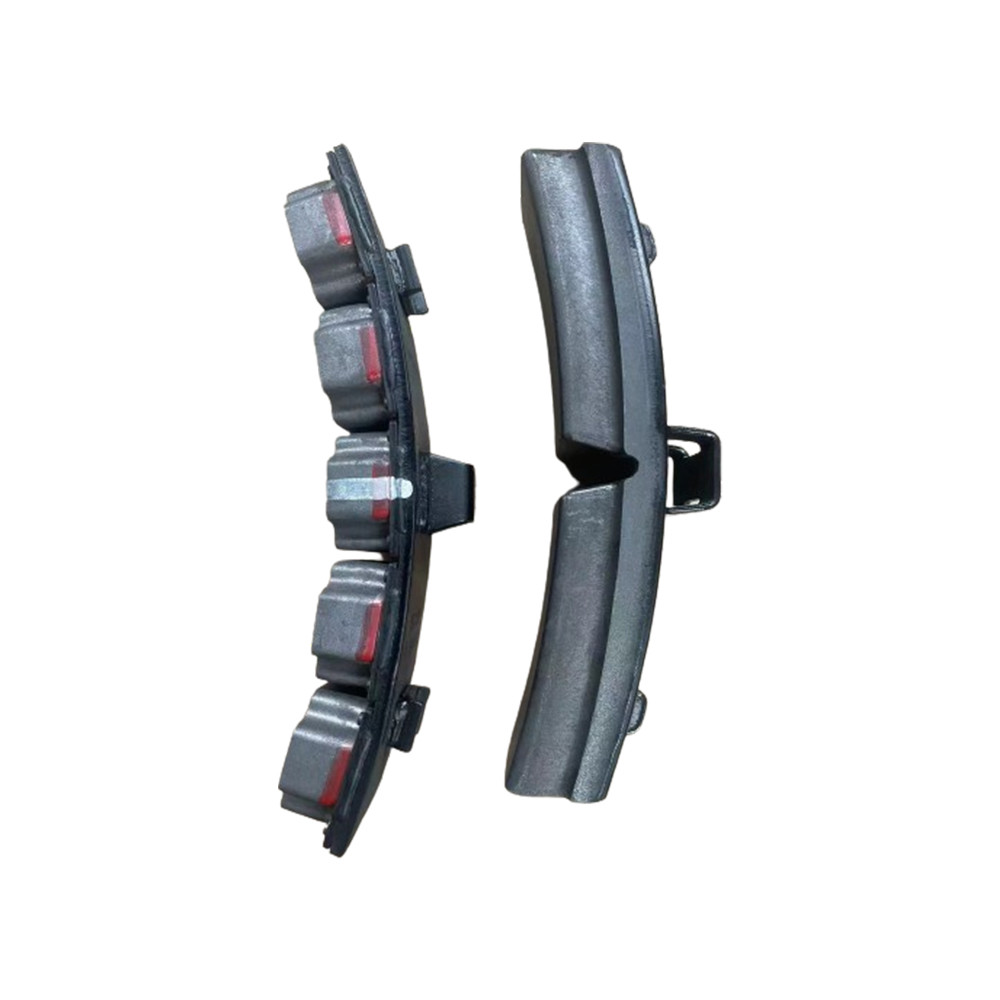

High Performance UIC Railway Brake System Powder Metallurgical Brake Shoe 1
